제품 상세 정보:
결제 및 배송 조건:
|
| 디지털 방식으로 급상승: | 4X | 최대 해결책: | 3840x2160p30 |
|---|---|---|---|
| FOV: | 110° | USB3.0: | 지원하는 |
| USB2.0: | 지원하는 | 화소: | 8Mega |
| 차원: | 220x173x117mm | ||
| 하이 라이트: | USB3.0 EPTZ Video Webcam,110° EPTZ Video Webcam,Huddle Room Ptz Usb Camera |
||

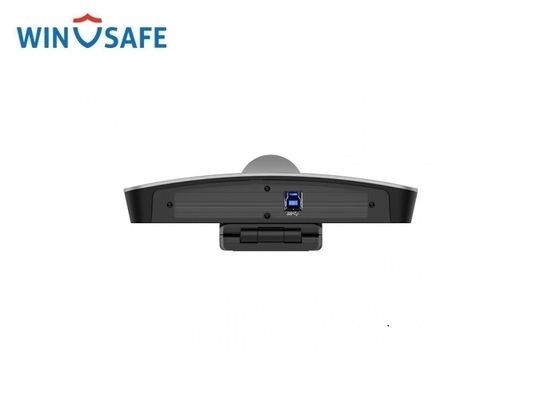

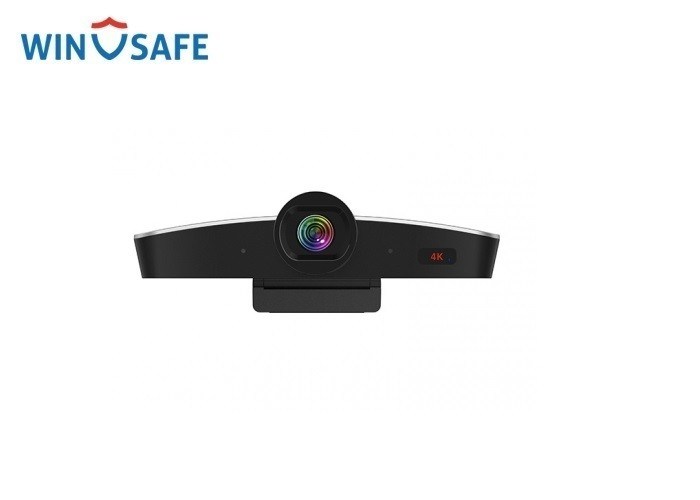

4K USB3.0 EPTZ Skype Video Webcam For Huddle Room / Medium Conference Room
UHV-100H-U3S is a professional 4K Ultra HD Eptz video conferencing camera, 4X digital zoom, 110 degree super wide angle, no PSU requested, power/control/video from USB3.0 and USB2.0, idea option for infividual desktop and huddle room video conferencing.
Feature
※ Adopt the most advanced image DSP and 1/2.5" 8.51MP Sensor
※ Used high quality 12MP optical full glass lens, output ultra-high definition and crisp image
※ Power via USB, a single USB cable for video output, camera control and power supply directly, friendly-use and flexible operation
※ Fast video swith: only 1 second
※ Unique and patent camera housing and mechanism design
※ Field firmware upgrade to simplify compatibility
※ Matched with full function IR remote controller, to control camera's electronic PTZ movement
※ 4x digital zoom
※ Support max 3840x2160@30 UHD resolution
※ 110 degree view angle without distortion
※ Electroinc pan/tilt design, no mechanism problem
※ Support WDR, 2D noise reduction
※ Support image flip function, camera can be installed upside down
Technical Specification
| Model No. | UHV-100H-U3S | |||
| Sensor | 1/2.8" inch high quality, 8.51MP Sony CMOS sensor | |||
| Video System | USB3.0 | USB2.0 | ||
| MJPG | YUV | MJPG | YUV | |
| 3840x2160P30/25/15 2560x1440P30/25/15 1080P30/25/15 720P30/25/15 160X120P30/25/15 176X144P30/25/15 320X240P30/25/15 352X288P30/25/15 640X480P30/25/15 1600X896P30/25/15 1024X576P30/25/15 960X540P30/25/15 848X480P30/25/15 800X600P30/25/15 800X448P30/25/15 640X360P30/25/15 480X270P30/25/15 320X180P30/25/15 |
1080P30/25/15 720P30/25/15 160X120P30/25/15 176X144P30/25/15 320X240P30/25/15 352X288P30/25/15 640X480P30/25/15 1600X896P30/25/15 1024X576P30/25/15 960X540P30/25/15 848X480P30/25/15 800X600P30/25/15 800X448P30/25/15 640X360P30/25/15 480X270P30/25/15 320X180P30/25/15 |
3840x2160P30/25/15 2560x1440P30/25/15 1080P30/25/15 720P30/25/15 160X120P30/25/15 176X144P30/25/15 320X240P30/25/15 352X288P30/25/15 640X480P30/25/15 1600X896P30/25/15 1024X576P30/25/15 960X540P30/25/15 848X480P30/25/15 800X600P30/25/15 800X448P30/25/15 640X360P30/25/15 480X270P30/25/15 320X180P30/25/15 |
1080P5 720P15/5 160X120P30/25/15 176X144P30/25/15 320X240P30/25/15 352X288P30/25/15 640X480P30/25/15 1600X896P5 1024X576P30/25/15 960X540P30/25/15 848X480P30/25/15 800X600P30/25/15 800X448P30/25/15 640X360P30/25/15 480X270P30/25/15 320X180P30/25/15 |
|
| Zoom | 4x digital zoom | |||
| Horizontal view angle | 110° | |||
| F.no. | 2 | |||
| Focal distance | f=2.22mm | |||
| Preset | Remote 10 | |||
| Control Interface | USB | |||
| Noise reduction | 2D | |||
| Minimun Lux | 0.1Lux | |||
| White Balance | Auto / Manual / Auto Tracking / OnePush / Indoor / Outdoor | |||
| Anti Flicker | OFF/50Hz/60Hz | |||
| Gamma | Support | |||
| In-ceiling Mount | Support | |||
| Mirror | Support | |||
| Focus | Fixed | |||
| Iris | Auto/Manual | |||
| BLC | Support | |||
| Image Flip | Support | |||
| USB Power | Support | |||
| Input Voltage | 5V 900mA | |||
| Dimension(W x H x W) | 220mm x 173mm x117mm | |||
